Ceramic Fiber Board

Product Overview

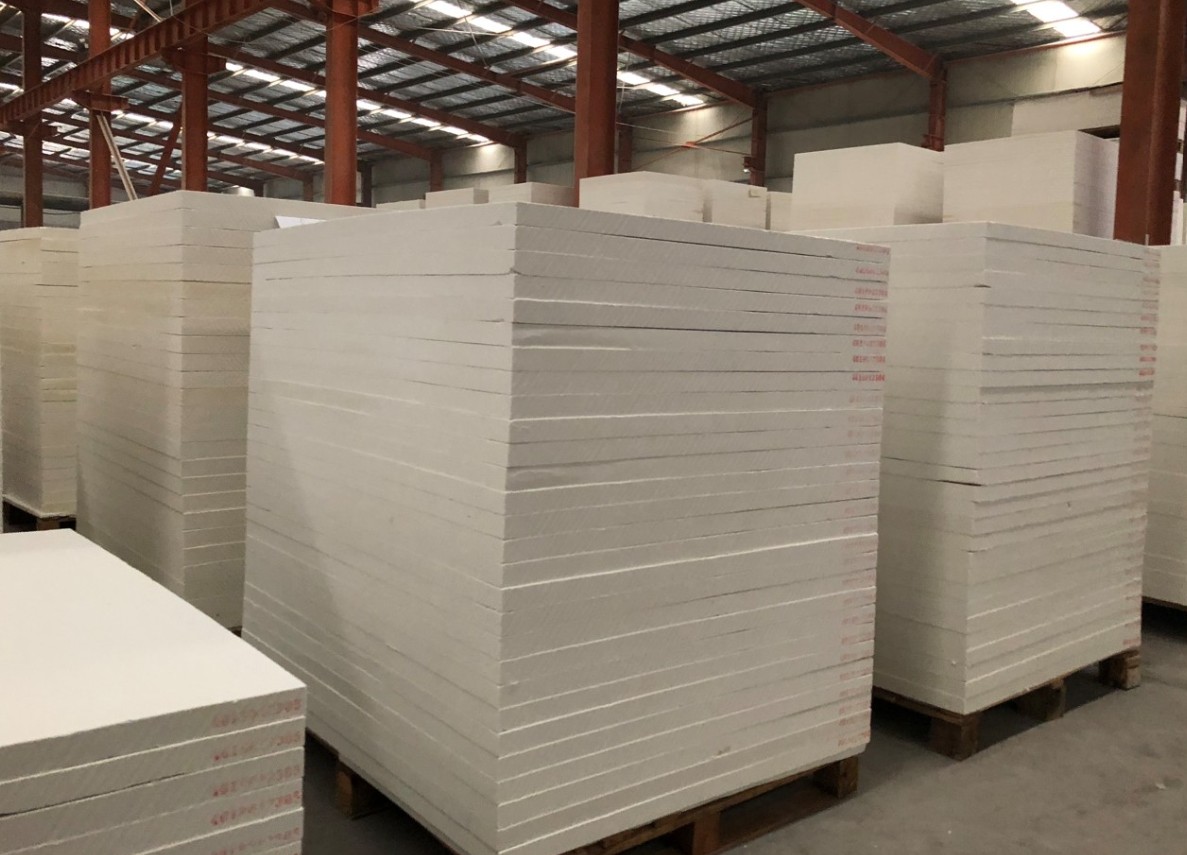

Ceramic Fiber Board is manufactured from high-purity ceramic fiber and binders through a vacuum forming process. It features low thermal conductivity, excellent high-temperature stability, uniform density, and superior thermal shock resistance.

The board is suitable for applications involving vibration, mechanical stress, and corrosive environments. It offers excellent rigidity and high strength, is self-supporting yet lightweight, and is easy to cut and machine.

Product Features

Low Thermal Conductivity

Excellent insulation, with conductivity as low as 0.065 W/m·K at 200°C.

High Rigidity & Strength

Self-supporting structure with strong mechanical properties, suitable for structural use.

Thermal Shock Resistance

Withstands rapid temperature changes and thermal cycling without cracking.

Easy Machining

Easily cut, drilled, and machined to precise dimensions for custom applications.

Uniform Density

Vacuum forming ensures consistent density and performance throughout the board.

Chemical Resistance

Resistant to most chemical corrosion, except hydrofluoric and phosphoric acid.

Product Types

Standard & High Purity

1260°C Standard — ZT-264
1260°C High Purity — ZT-364
1400°C High Alumina — ZT-564

Higher Density · Fire Protection

Ceramic Fiber Fireboard

1260°C Standard — ZT-364D
1400°C High Alumina — ZT-464D

Technical Specifications

Property	Ceramic Fiber Board			Ceramic Fiber Fireboard
Property	1260	1400	1400 HA	1260	1400
Product Code	ZT-264	ZT-364	ZT-564	ZT-364D	ZT-464D
Permanent Linear Shrinkage (%)	1000°C×24h ≤-3	1100°C×24h ≤-3	1350°C×24h ≤-3	1000°C×24h ≤-3	1200°C×24h ≤-3
Thermal Conductivity @200°C (W/m·K)	0.065–0.085	0.070–0.090	0.070–0.090	0.103	0.103
Thermal Conductivity @400°C (W/m·K)	0.095–0.112	0.110–0.125	0.110–0.125	0.125	0.125
Thermal Conductivity @600°C (W/m·K)	0.145–0.165	0.155–0.175	0.155–0.175	0.151	0.151
Moisture Content (%)	≤ 1
Organic Content (%)	≤ 5
Bulk Density (kg/m³)	280 / 300 / 320			320
Standard Size (mm)	900/1000/1100 × 500/600/700 × 20/25/50			800/900 × 600/700 × 25/30/40/50
Packing	Plastic bag + carton box
Quality Standards	ISO 9001-2000, ISO 14001-1996

ZT-264: 1260°C Standard Board | ZT-364: 1260°C High Purity Board | ZT-564: 1400°C High Alumina Board
ZT-364D: 1260°C Fireboard | ZT-464D: 1400°C Fireboard

Typical Applications

Used in steel, metallurgy, petrochemical, ceramic, mechanical, non-ferrous metal, and glass industries for furnace lining, backup insulation, expansion joints, kiln temperature-zone separation, and fire protection.
